Camshaft Position Sensor (CMPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

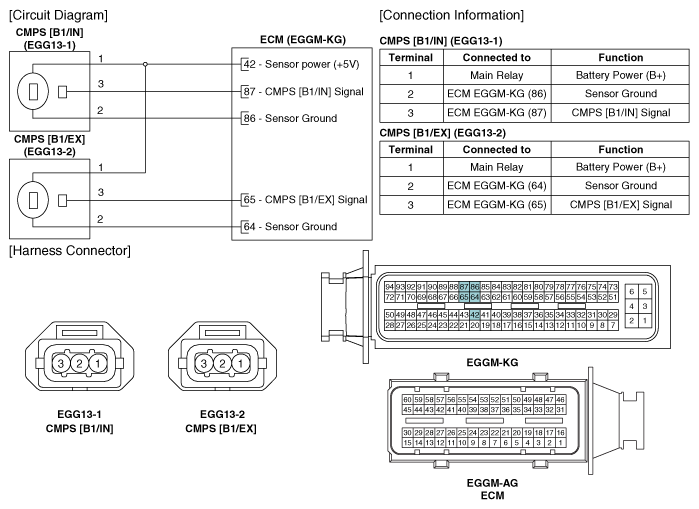

Fig 1: Camshaft Position Sensor Circuit (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

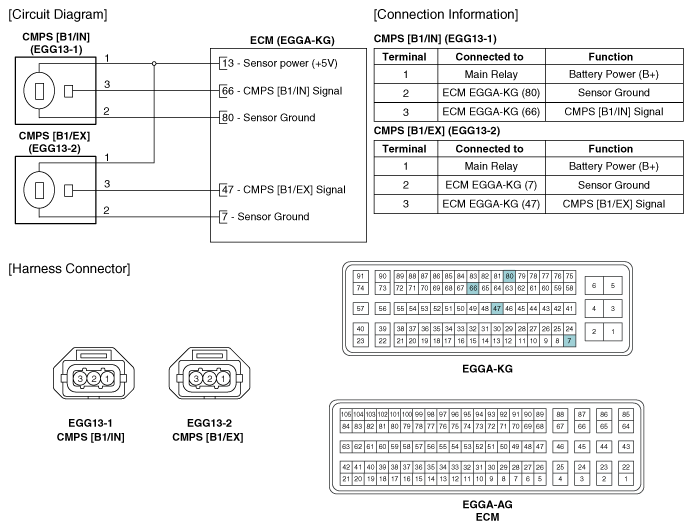

Fig 2: Camshaft Position Sensor Circuit (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
