Kia
›
2017
›
Rio SX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Components And Components Location
›
Components Location
Components Location

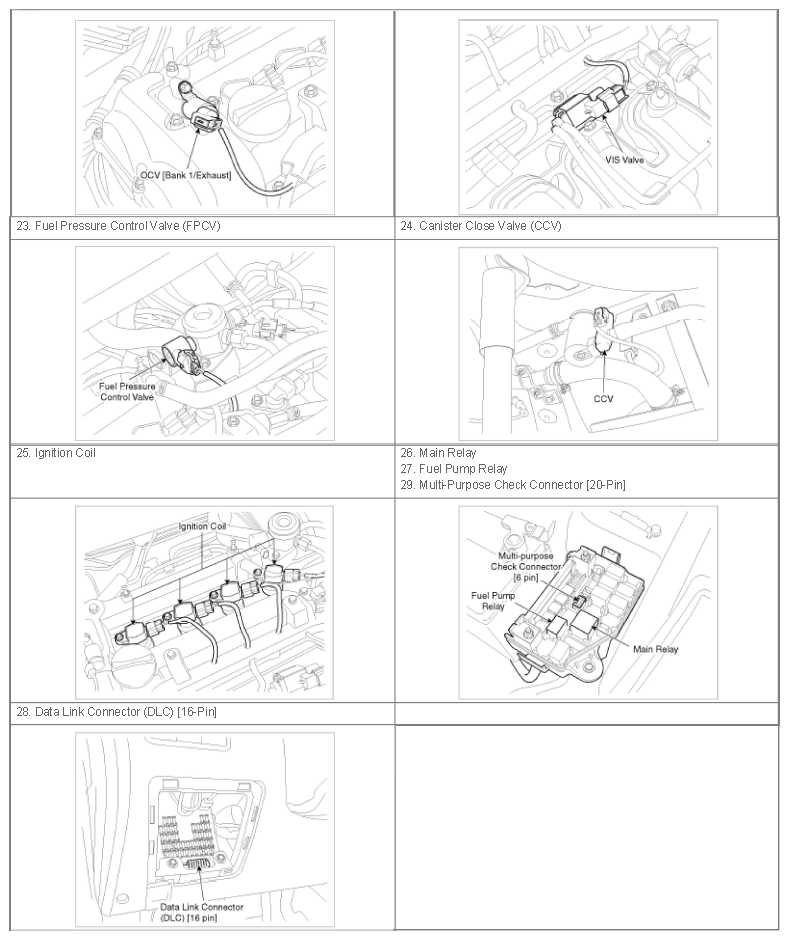

Fig 1: Locating Engine Control System Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

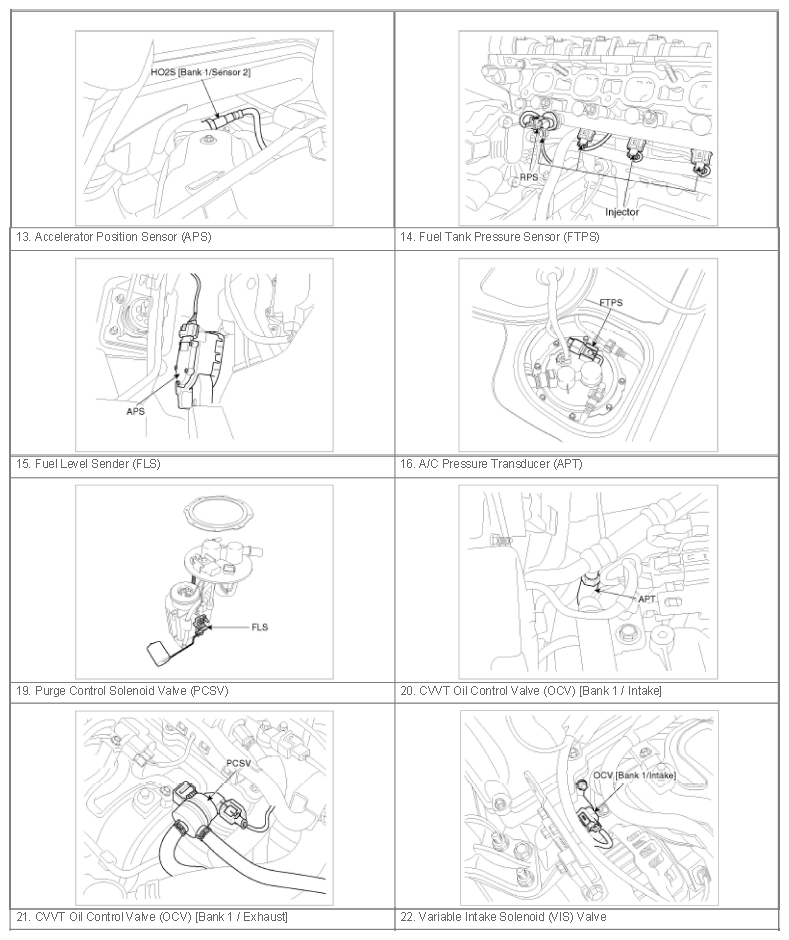

Fig 2: Locating Engine Control System Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

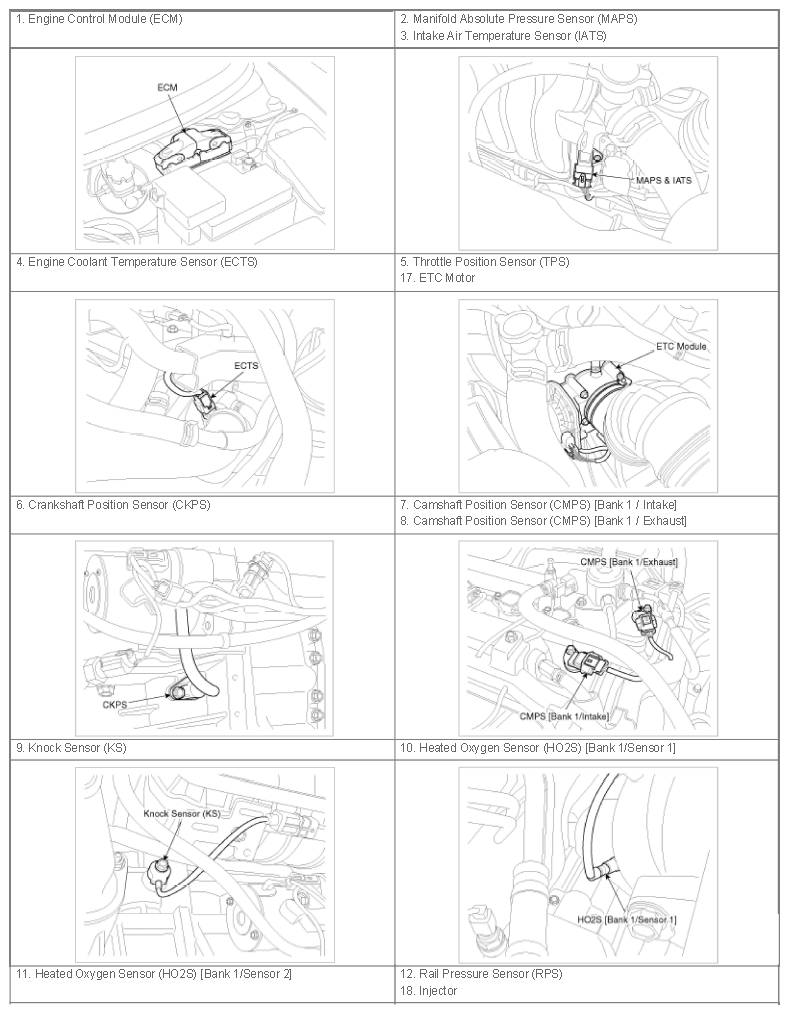

Fig 3: Locating Engine Control System Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

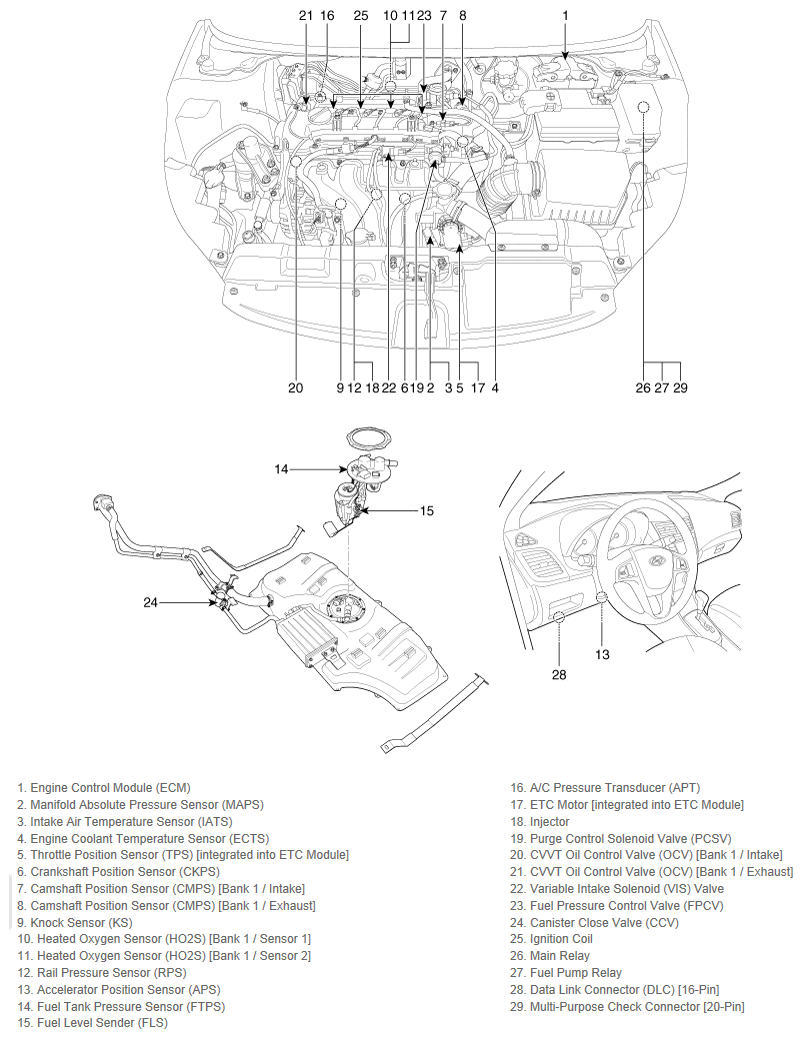

Fig 4: Locating Engine Control System Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
