Circuit Diagram

(M/T)

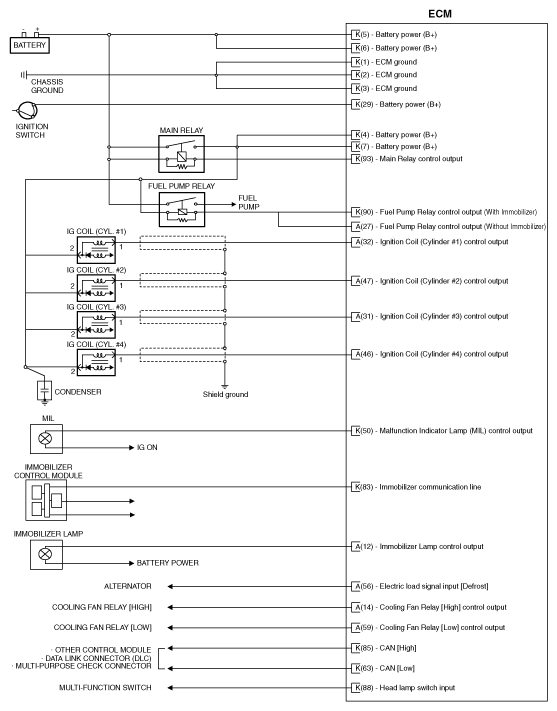

Fig 1: ECM Circuit - M/T (1 Of 4)

G11845107

Courtesy of KIA MOTORS AMERICA, INC.

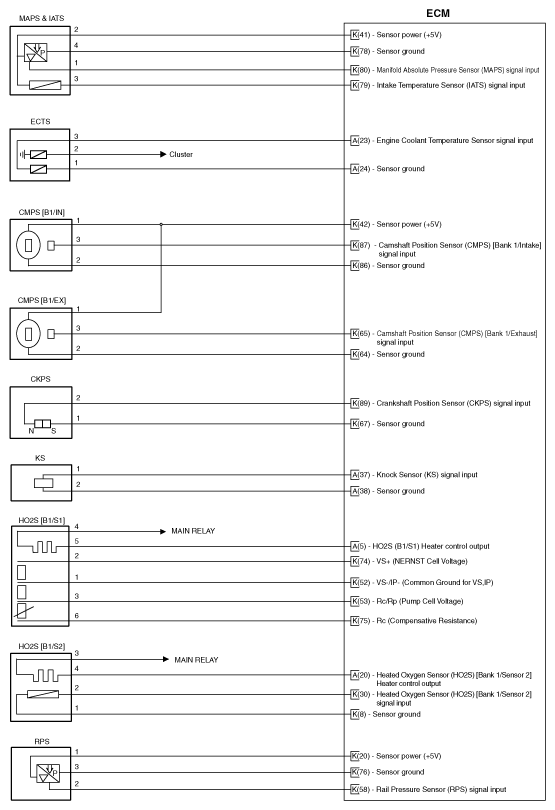

Fig 2: ECM Circuit - M/T (2 Of 4)

G11845108

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: ECM Circuit - M/T (3 Of 4)

G11845109

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: ECM Circuit - M/T (4 Of 4)

G11845110

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

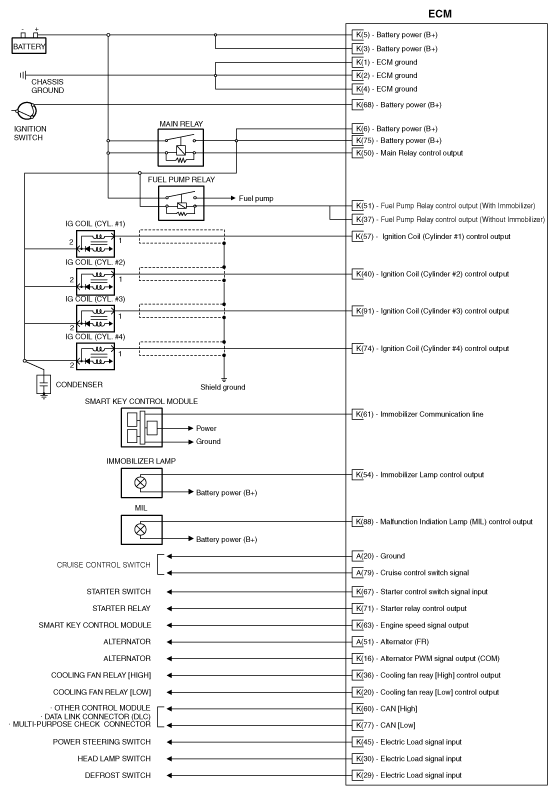

Fig 5: ECM Circuit - A/T (1 Of 4)

G11845111

Courtesy of KIA MOTORS AMERICA, INC.

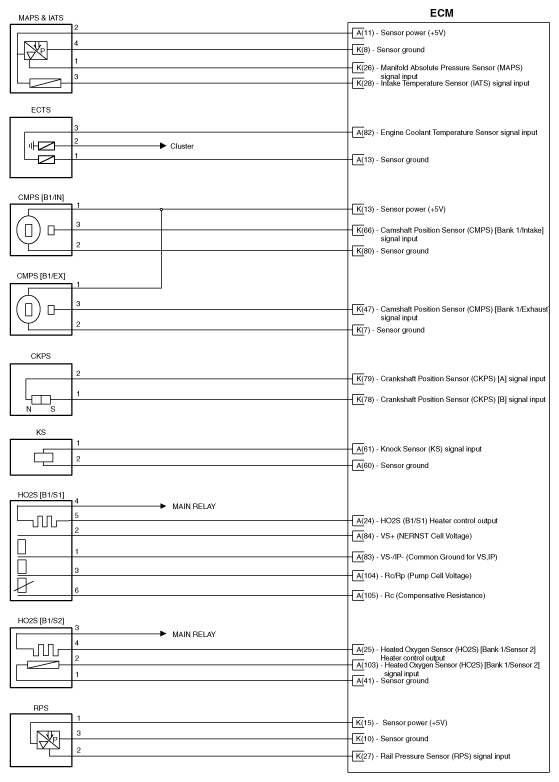

Fig 6: ECM Circuit - A/T (2 Of 4)

G11845112

Courtesy of KIA MOTORS AMERICA, INC.

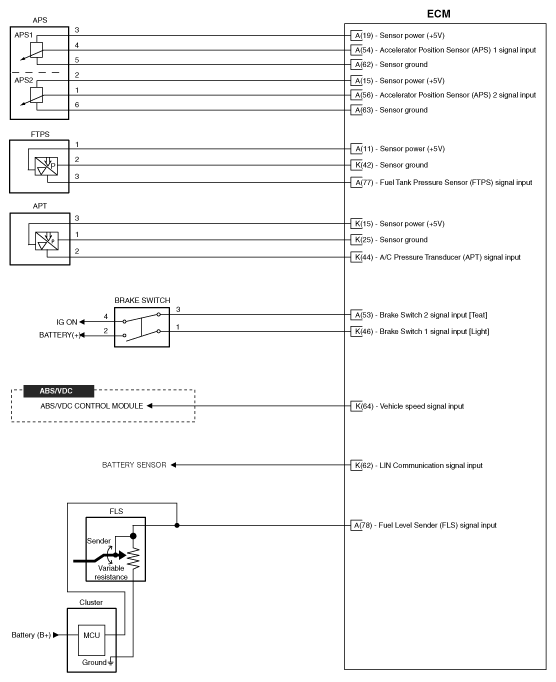

Fig 7: ECM Circuit - A/T (3 Of 4)

G11845113

Courtesy of KIA MOTORS AMERICA, INC.

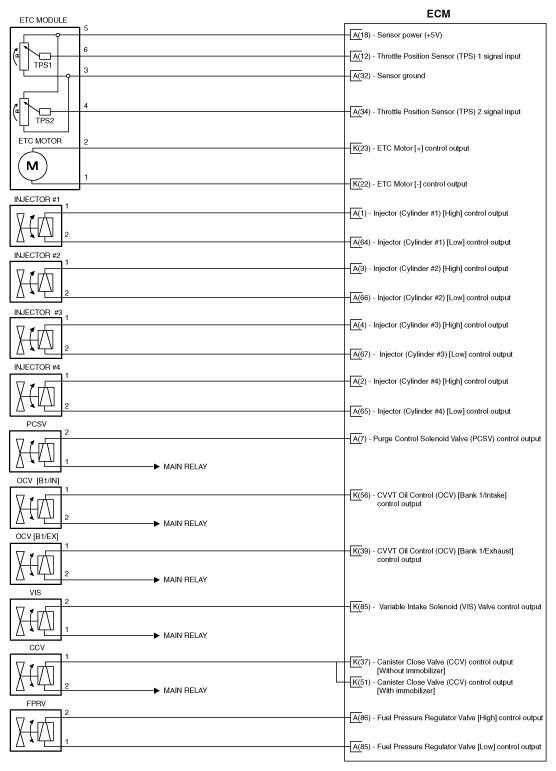

Fig 8: ECM Circuit - A/T (4 Of 4)

G11845114

Courtesy of KIA MOTORS AMERICA, INC.
