Circuit Diagram

(M/T)

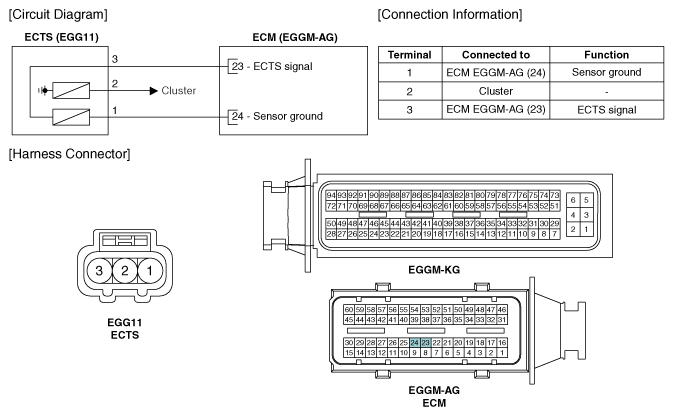

Fig 1: Engine Coolant Temperature Sensor Circuit (M/T)
G11845137Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

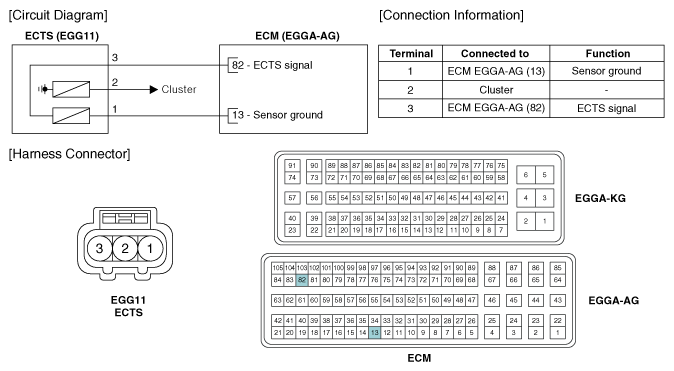

Fig 2: Engine Coolant Temperature Sensor Circuit (A/T)
G11845138Courtesy of KIA MOTORS AMERICA, INC.
