Circuit Diagram

(M/T)

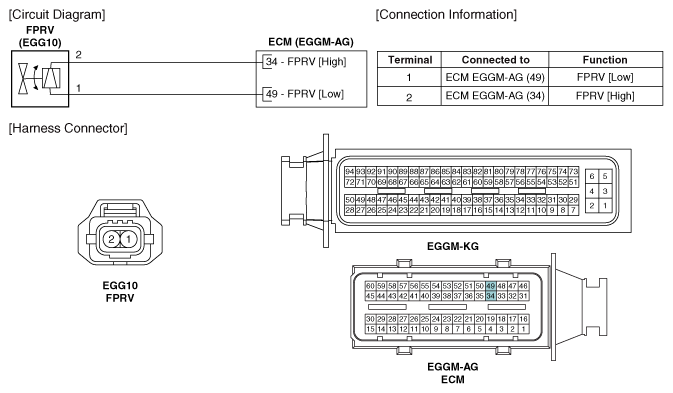

Fig 1: FPRV Circuit (M/T)
G11845220Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

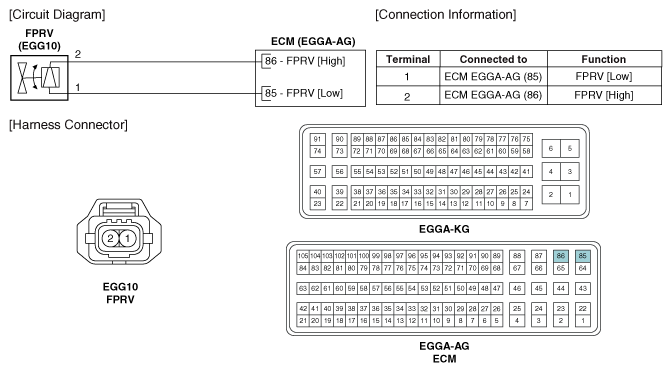

Fig 2: FPRV Circuit (A/T)
G11845221Courtesy of KIA MOTORS AMERICA, INC.
