Heated Oxygen Sensor (HO2S)
›
Troubleshooting
›
Signal Waveform
Signal Waveform

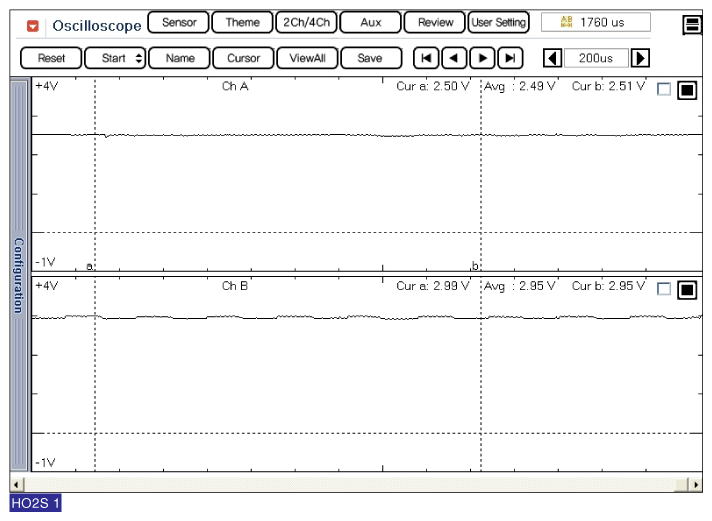

Fig 1: Screen Display - Waveform (HO2S 1)
Courtesy of KIA MOTORS AMERICA, INC.

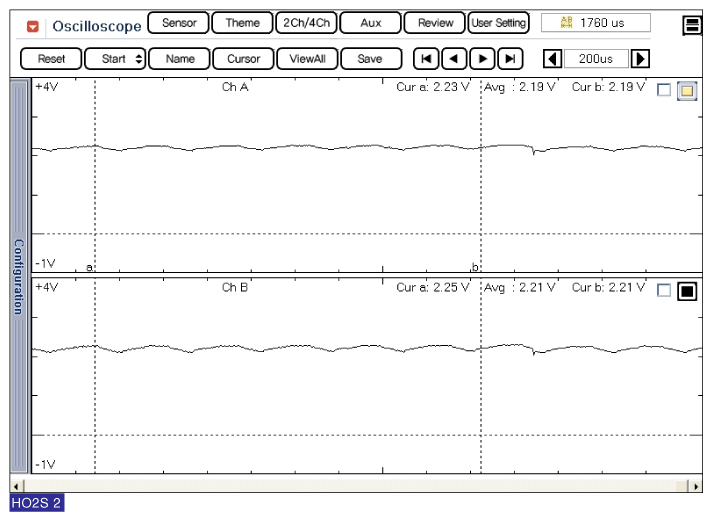

Fig 2: Screen Display - Waveform (HO2S 2)
Courtesy of KIA MOTORS AMERICA, INC.

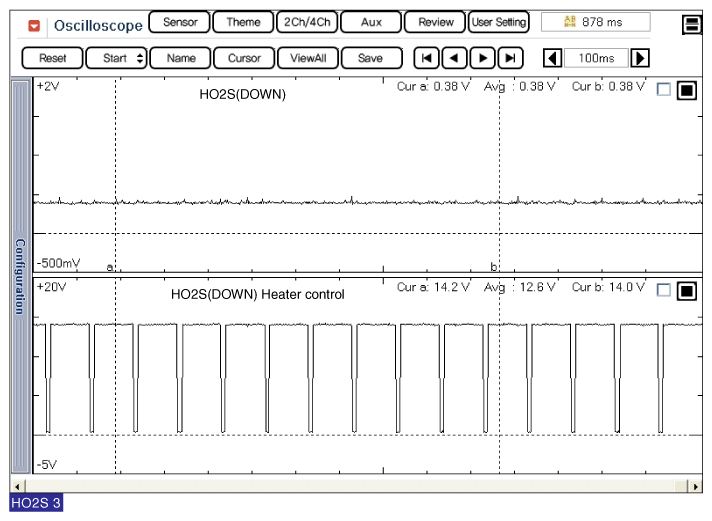

Fig 3: Screen Display - Waveform (HO2S 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
