Circuit Diagram

(M/T)

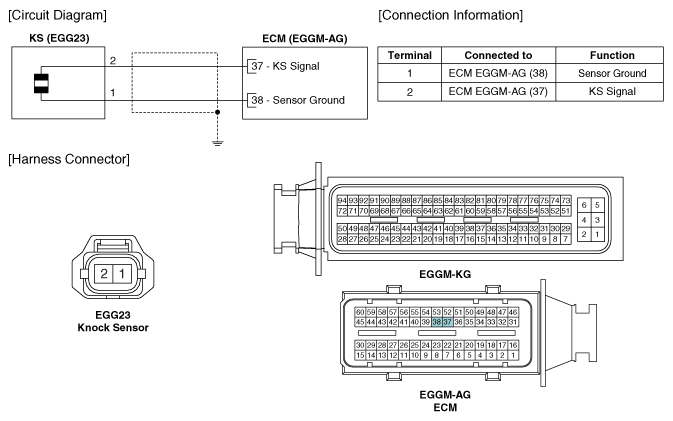

Fig 1: Knock Sensor Circuit (M/T)
G11845154Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

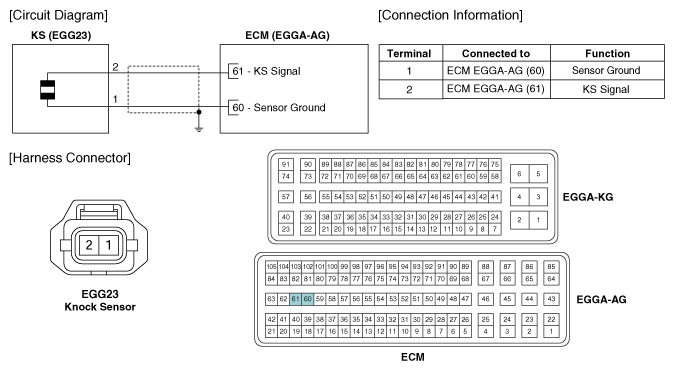

Fig 2: Knock Sensor Circuit (A/T)
G11845155Courtesy of KIA MOTORS AMERICA, INC.
