Circuit Diagram

(M/T)

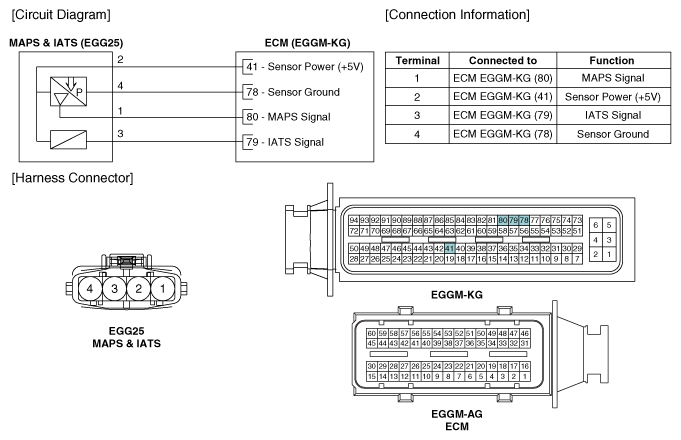

Fig 1: MAPS And IATS Circuit (M/T)
G11845129Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

Fig 2: MAPS And IATS Circuit (A/T)
G11845130Courtesy of KIA MOTORS AMERICA, INC.
