Circuit Diagram

(M/T)

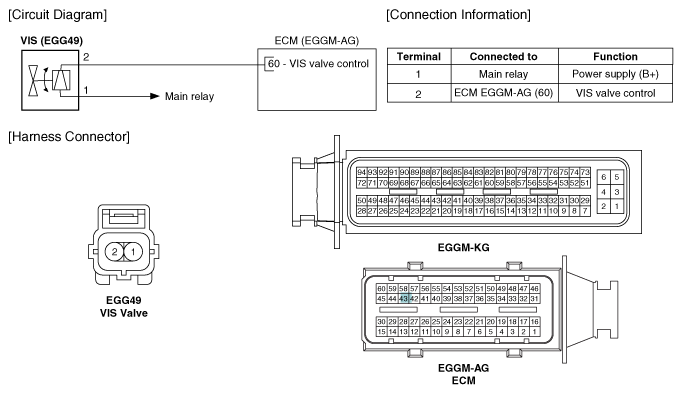

Fig 1: VIS Valve Circuit (M/T)
G11845215Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

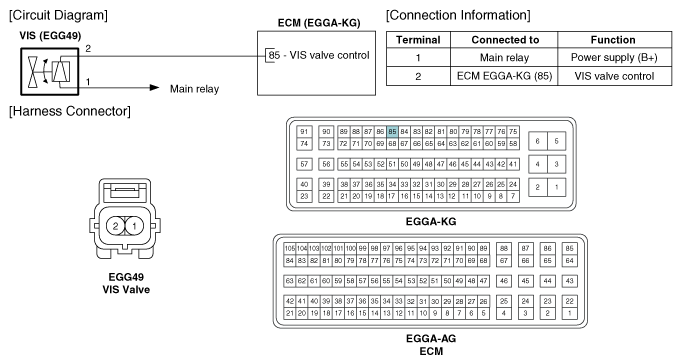

Fig 2: VIS Valve Circuit (A/T)
G11845216Courtesy of KIA MOTORS AMERICA, INC.
