Power Circuit Inspection

■ Check Open or Short in Power Circuit

1. IG "OFF" & Disconnect HO2S (S2) connector.
2. IG "ON".
3. Measure the voltage between power terminal of HO2S (S2) harness connector and chassis ground.

   Specification:  Approx B+

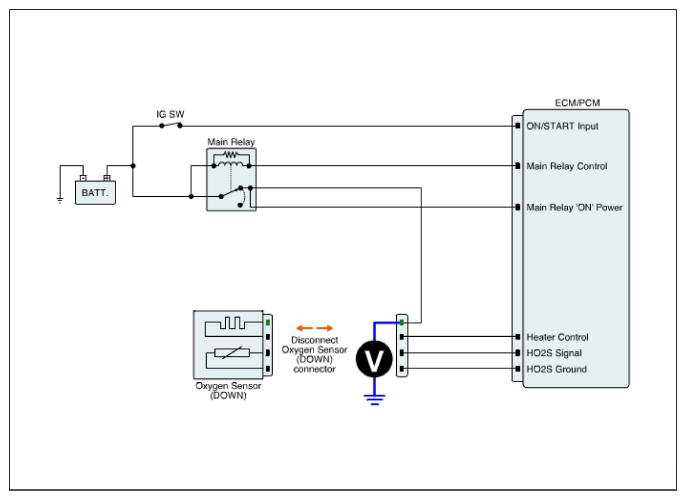

   Fig 1: Measuring Voltage Between Power Terminal Of HO2S Harness Connector

   Courtesy of KIA MOTORS AMERICA, INC.

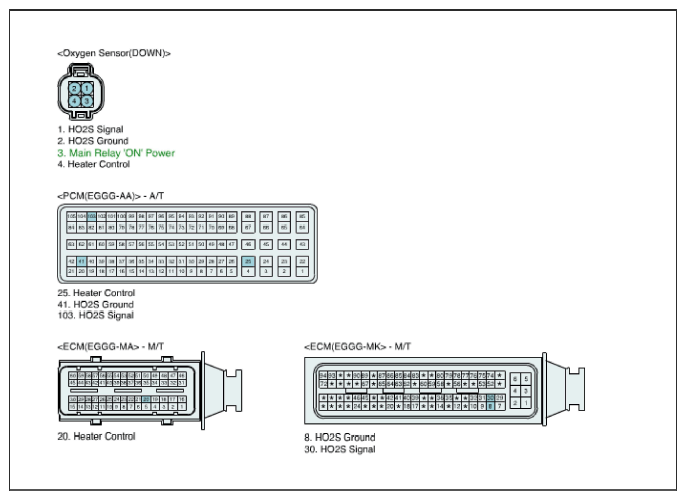

   Fig 2: HO2S Connector Terminals

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?

   YES

   • Go to "CONTROL CIRCUIT INSPECTION " procedure.

   NO

   • Repair Open or Short circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
