Kia
›
2017
›
Rio SX
›
Repair and Diagnosis
›
Engine Performance
›
Tune-Up
›
Ignition System
›
Ignition Coil
›
Schematic Diagrams
›
System Circuit
System Circuit

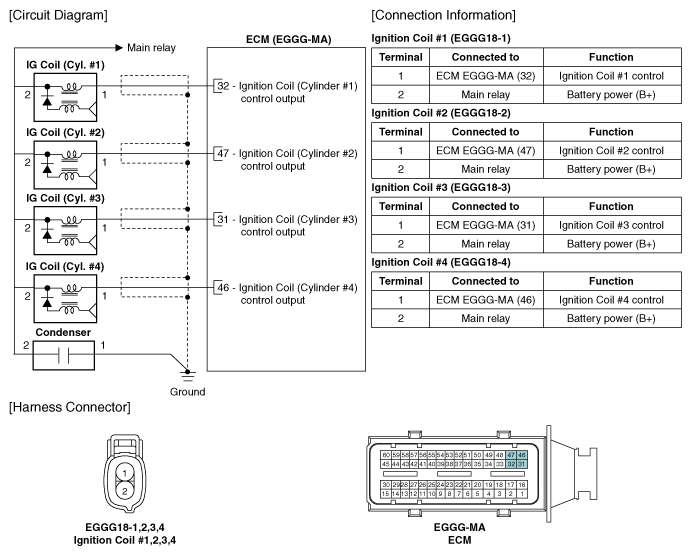

Fig 1: Ignition Coil System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
