Driver Airbag (DAB) Module And Clock Spring
›
Components And Components Location
›
Components
Components And Components Location: Components

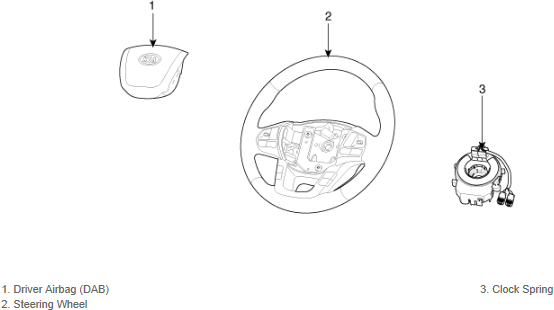

Fig 1: Locating Driver Airbag (DAB) Module And Clock Spring Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
