Valve Body Flow
Valve Body Flow

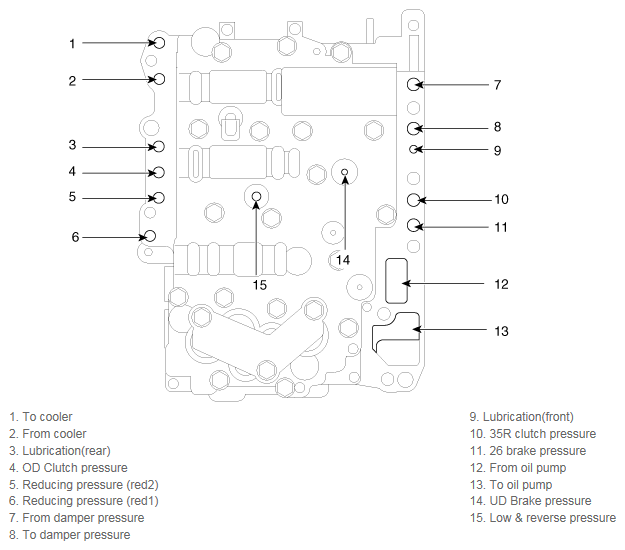

Fig 1: Valve Body Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
