2017
›
Rio SX
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
TCM Terminal Input/Output Signal
›
Circuit Diagram
Circuit Diagram

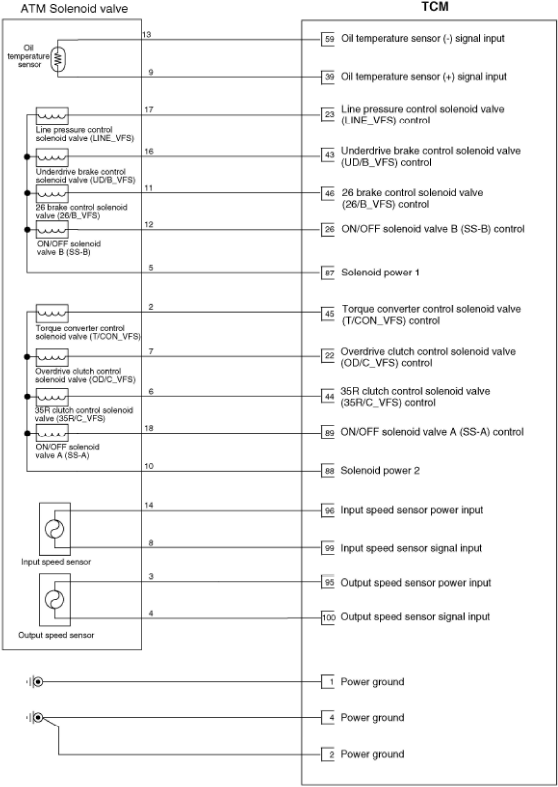

Fig 1: TCM Terminal Input/ Output Signal Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

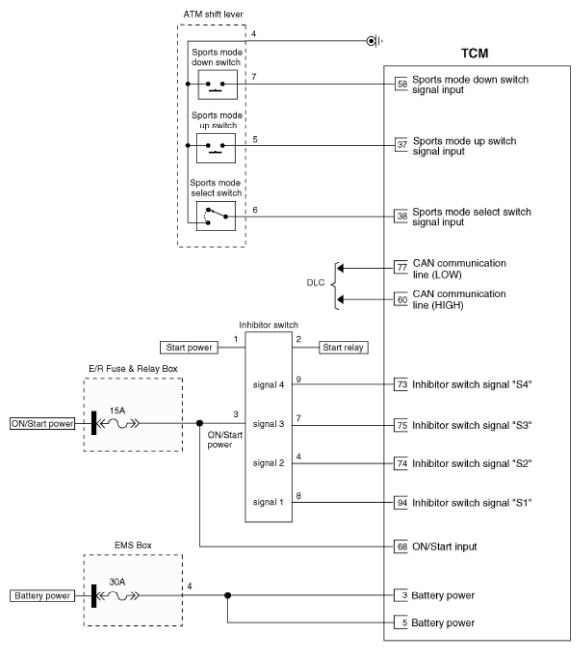

Fig 2: TCM Terminal Input/ Output Signal Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
