Integrated Memory (IMS) System
›
IMS (Integrated Memory System) Module
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

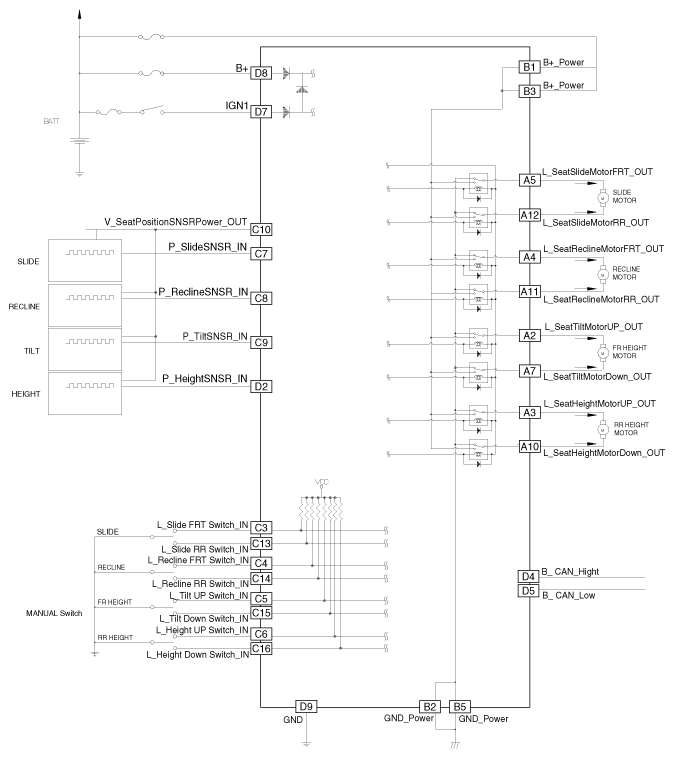

Fig 1: IMS (Integrated Memory System) Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
