Schematic Diagrams: Components

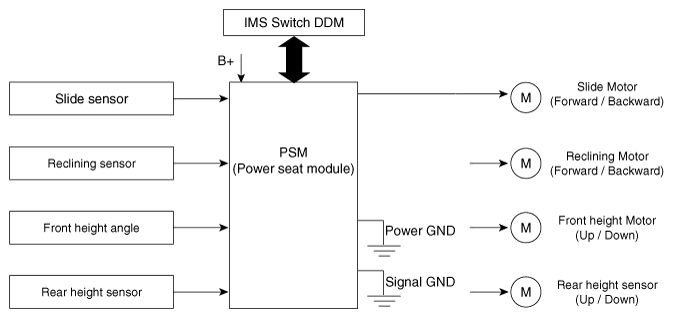

Fig 1: IMS (Integrated Memory) Schematic Diagrams
G12272073Courtesy of KIA MOTORS AMERICA, INC.
