[Assist Power Window Module (ADM, IMS)]

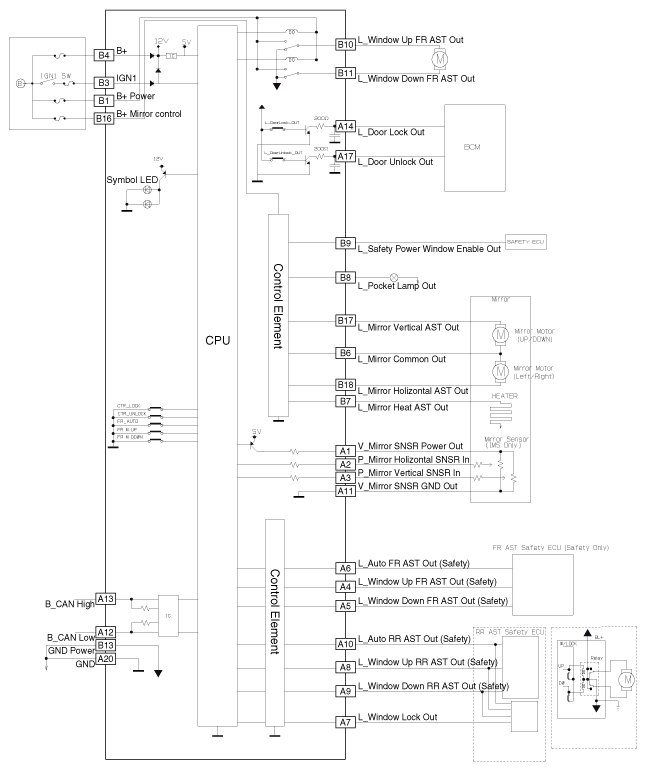

Fig 1: Assist Power Window Module Circuit Diagram (ADM, IMS)
G12272372Courtesy of KIA MOTORS AMERICA, INC.
