Driver Power Window Switch
Driver Power Window Switch

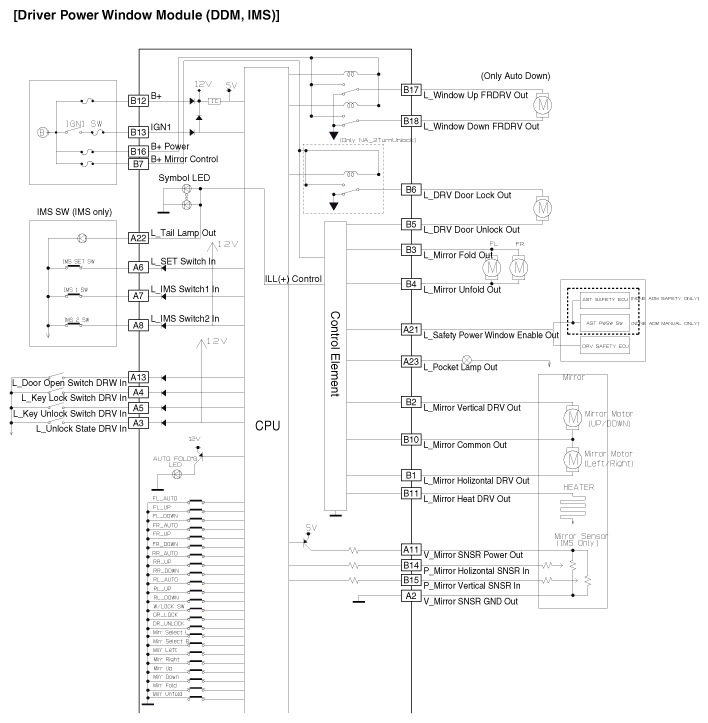

Fig 1: Driver Power Window Switch Circuit Diagram (IMS; 1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Driver Power Window Switch Circuit Diagram (IMS; 2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
