Home › Kia › 2017 › Sedona EX › Repair and Diagnosis › Engine Mechanical › Lubrication System › Oil Pump › Components And Components Location › Components

Components And Components Location: Components

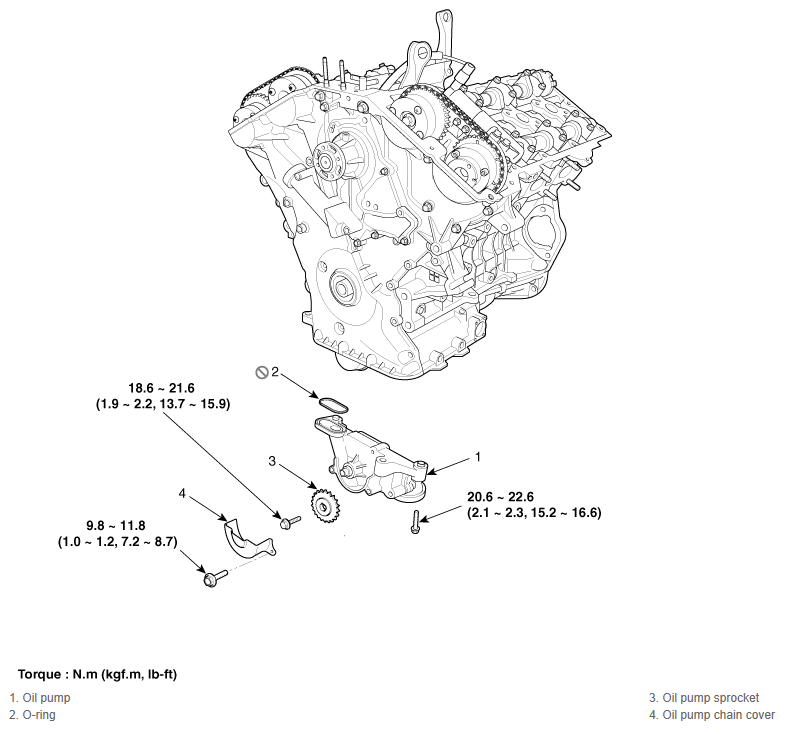

Fig 1: Oil Pump Components Location With Torque Specification
G12273395Courtesy of KIA MOTORS AMERICA, INC.
