Components And Components Location: Components

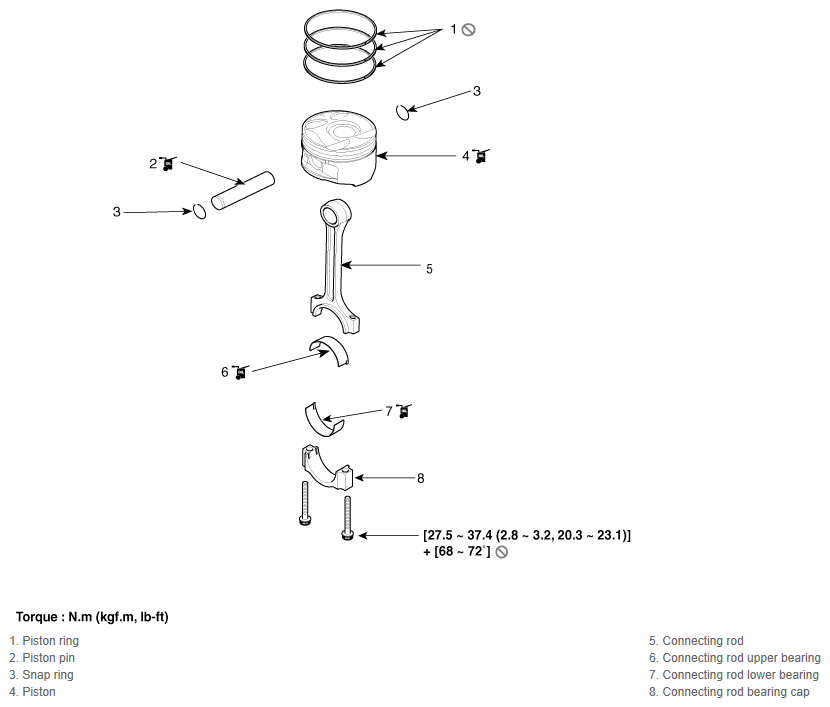

Fig 1: Piston & Connecting Rod Components Location With Torque Specification
G12273130Courtesy of KIA MOTORS AMERICA, INC.
