Components And Components Location: Components

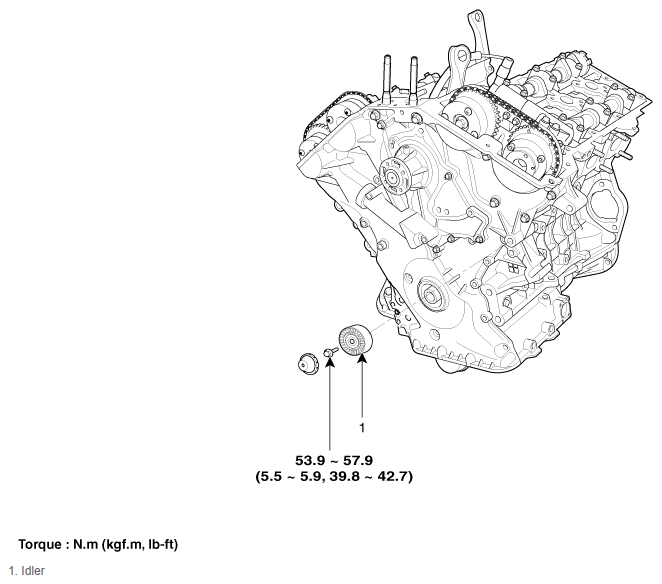

Fig 1: Idler Components Location With Torque Specification
G12273417Courtesy of KIA MOTORS AMERICA, INC.
