Engine Control System
›
ETC (Electronic Throttle Control) System
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

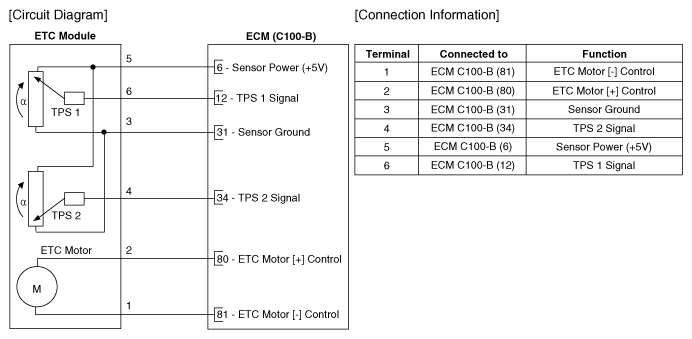

Fig 1: Electronic Throttle Control System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
