Kia
›
2017
›
Sedona EX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

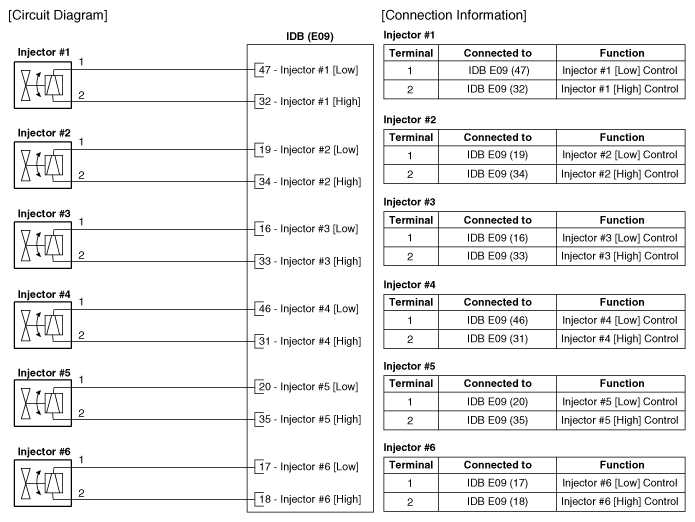

Fig 1: Fuel Injector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
