Automatic Transaxle Control System
›
Inhibitor Switch
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

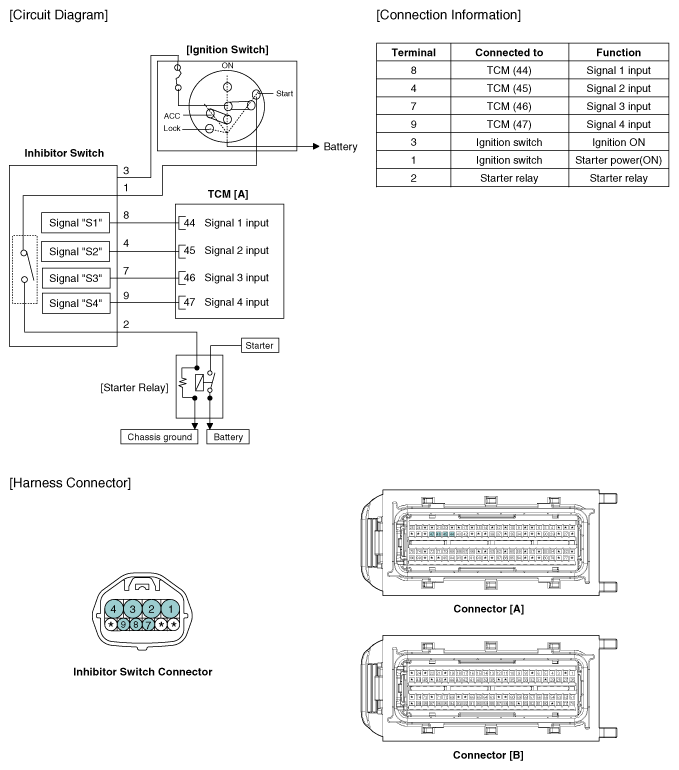

Fig 1: Inhibitor Switch Circuit Diagram
