Automatic Transaxle Control System
›
Transaxle Oil Temperature Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

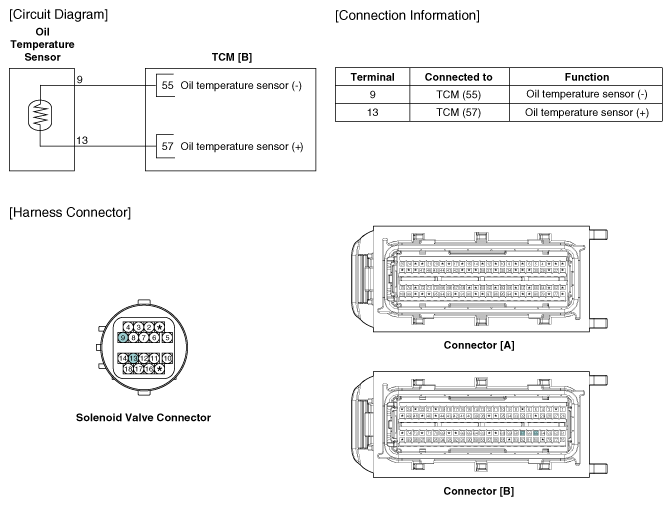

Fig 1: Transaxle Oil Temperature Sensor Circuit Diagram And Connector End View
