GDS Data Analysis
- Connect GDS to Data Link Connector(DLC).
- Ignition "ON"

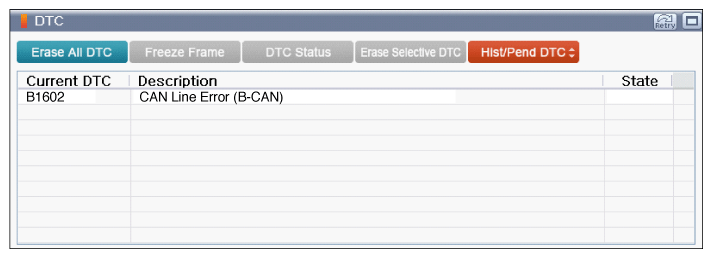

- Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
- Is DTC status displayed as Present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in PSM's connector or was repaired and PSM memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
