Components And Components Location: Components

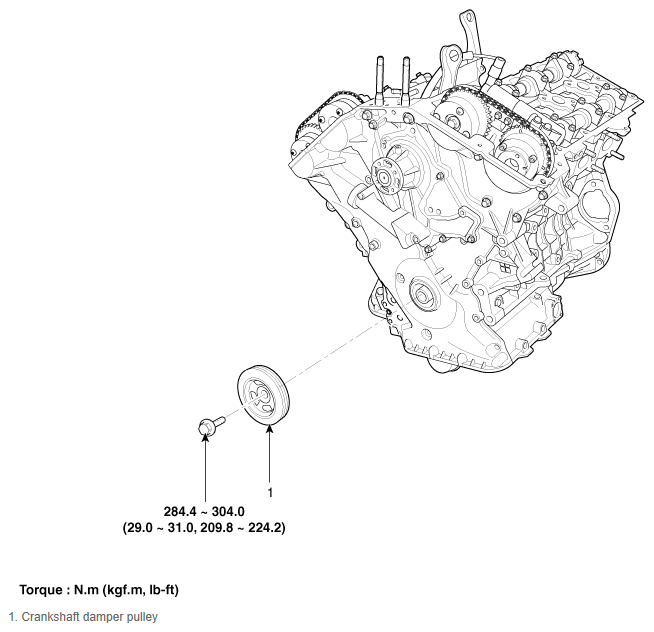

Fig 1: Crankshaft Damper Pulley Components Location With Torque Specification
G12273421Courtesy of KIA MOTORS AMERICA, INC.
