Monitor GDS Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector(DLC).
  3. Refer to LIFT AND SUPPORT POINTS and lift vehicle with suitable lift.
  4. Engine "ON".
  5. Place gear lever position to "D" and Turn "OFF" TCS/ESC(ESP) system.
  6. Monitor "Input Speed(PG-A)", "Shift Lever Switch", "Vehicle Speed" and "Engine RPM" parameter in "Current Data"  with GDS.

    Specification:  Refer to Fig 1 below

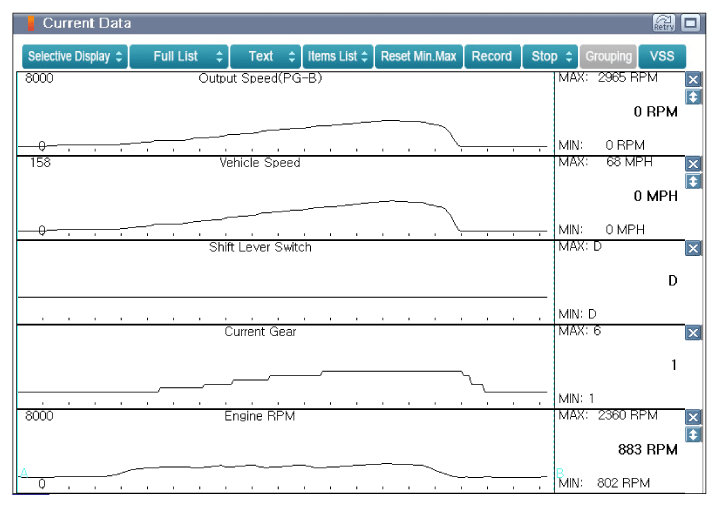

    Fig 1: Screen Display - Output Speed And Vehicle Speed Data Signal Waveform, When Driving On Lift
    G12278266Courtesy of KIA MOTORS AMERICA, INC.
  7. Is displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next procedure.
  8. Ignition "OFF".
  9. Refer to REPAIR PROCEDURES and LIFT AND SUPPORT POINTS and remove necessary parts to get access to ATM Solenoid connector and lift vehicle with suitable lift.
  10. Engine "ON".
  11. Back probe and measure signal waveform between Pin No. 8 (Signal) terminal of ATM Solenoid harness connector and chassis ground.

    Specification:  High - Approx. 1.5 V/Low - Approx. 0.7 V (Refer to Fig 2 below)

    Fig 2: Screen Display - Input & Output Speed Data And Signal Waveform At Engine ON, Gear Lever Position At P/N
    G12278267Courtesy of KIA MOTORS AMERICA, INC.

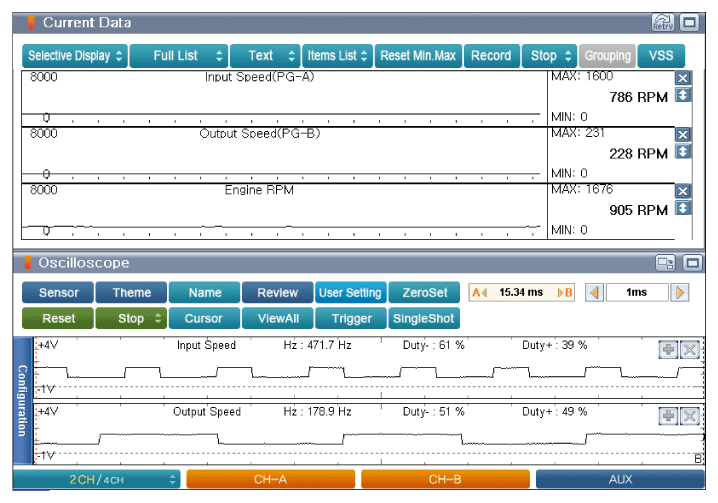

    Fig 3: Screen Display - Input & Output Speed Data And Signal Waveform At Engine ON, Gear Lever Position At R
    G12278268Courtesy of KIA MOTORS AMERICA, INC.

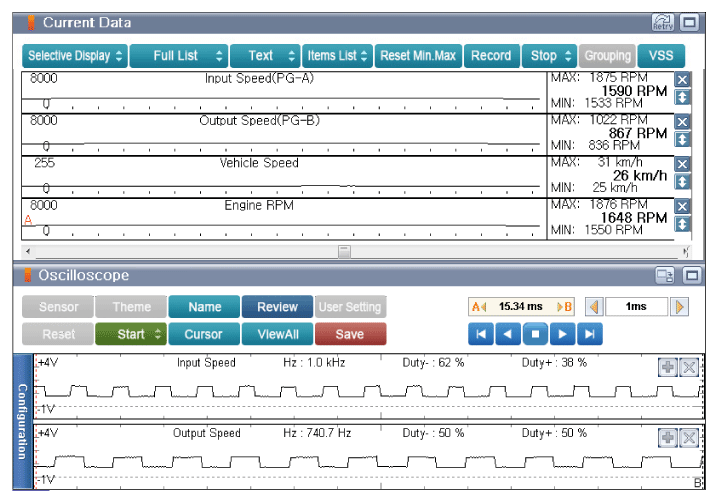

    Fig 4: Screen Display - Input & Output Speed Data And Signal Waveform At Engine ON, Gear Lever Position At R
    G12278269Courtesy of KIA MOTORS AMERICA, INC.
    Fig 5: Screen Display - VMI Probe To Measure Input/Output Speed Sensor Signal Waveform
    G12278270Courtesy of KIA MOTORS AMERICA, INC.
  12. Is measured value within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
