Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

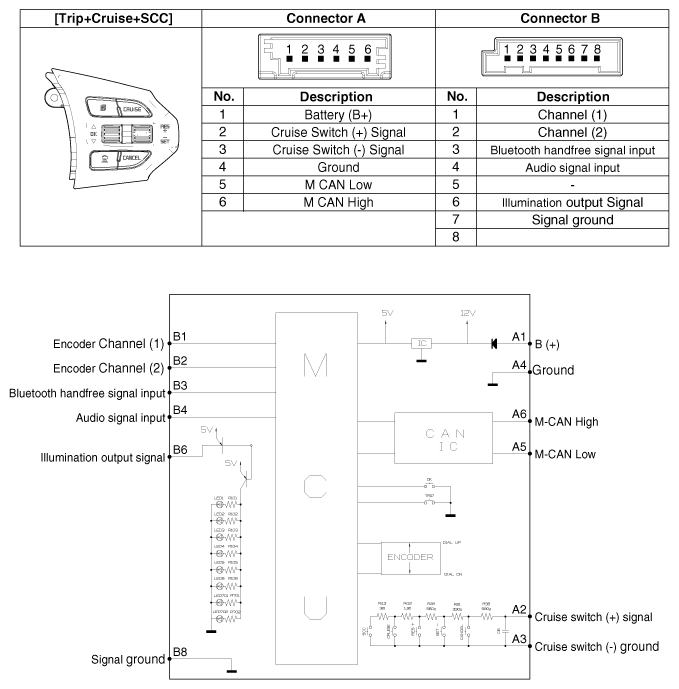

Fig 1: Smart Cruise Control Switch Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
