Components And Components Location: Component

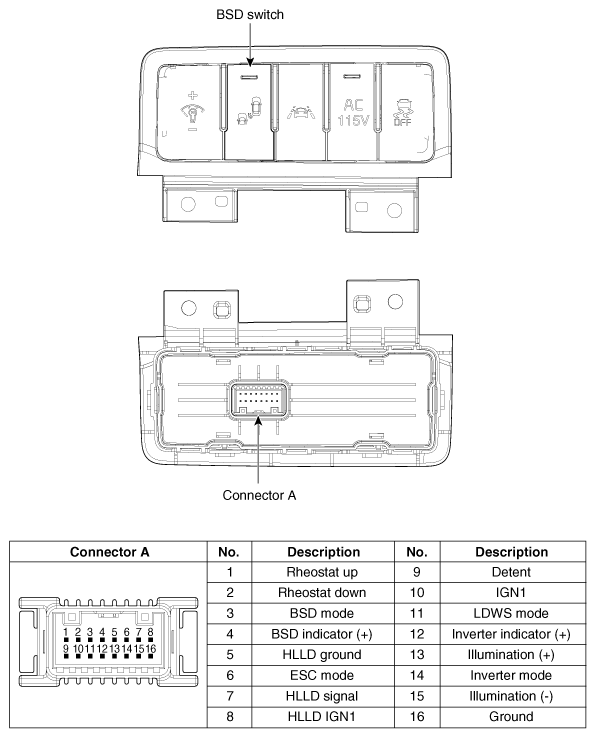

Fig 1: Blind Spot Detection Switch Connector Terminals And Connector End View
G12278209Courtesy of KIA MOTORS AMERICA, INC.
