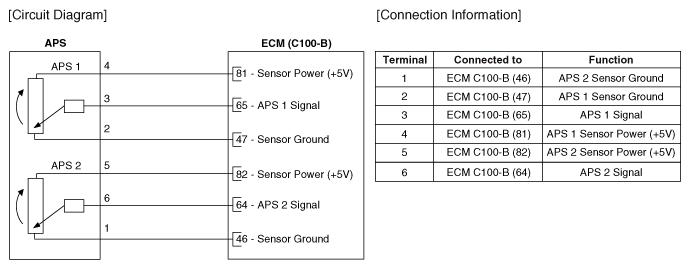

Home › Kia › 2017 › Sorento EX, 2.0L Eng VIN 1, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L T › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
