Repair Procedures: Replacement

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the third row seat.

   (Refer to "REAR SEAT ASSEMBLY ")

2. Remove the rear door scuff trim.

   (Refer to "DOOR SCUFF TRIM ")

3. Remove the cargo screen (A).
4. Remove the luggage covering met (B).
5. Remove the luggage tray board (C).
6. Remove the rear transverse trim (D).
7. After loosening the mounting screws, then remove the luggage side trim (E).
8. Install in the reverse order of removal.

Information

• Replace any damaged clips.

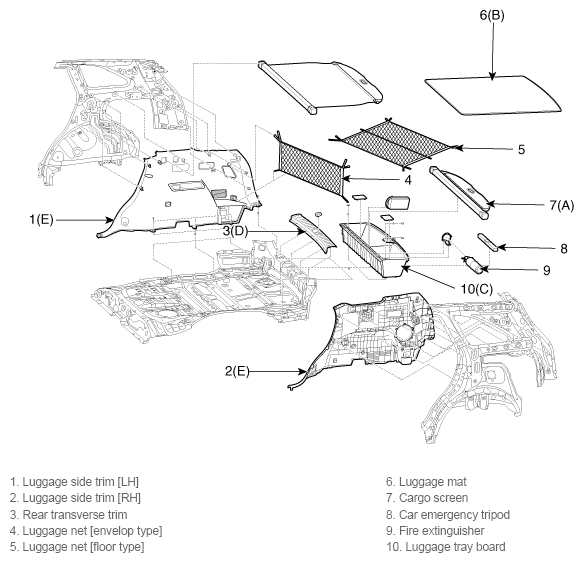

Fig 1: Trunk Trim Component Locations

Courtesy of KIA MOTORS AMERICA, INC.
