Integrated Memory System (IMS)
›
IMS (Integrated Memory System) Module
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

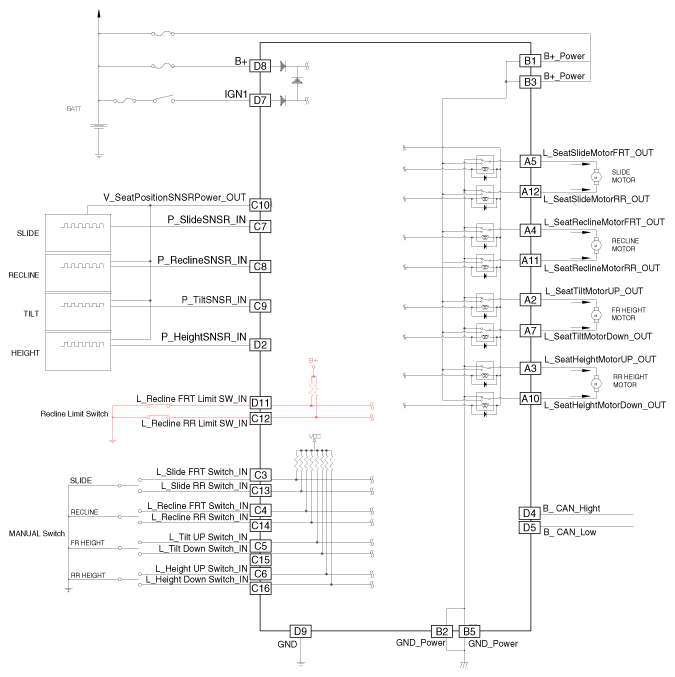

Fig 1: Integrated Memory System Module Circuit Diagram
