Power Windows
›
Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›
Driver Power Window Switch
›
Driver Power Window Module
Driver Power Window Module

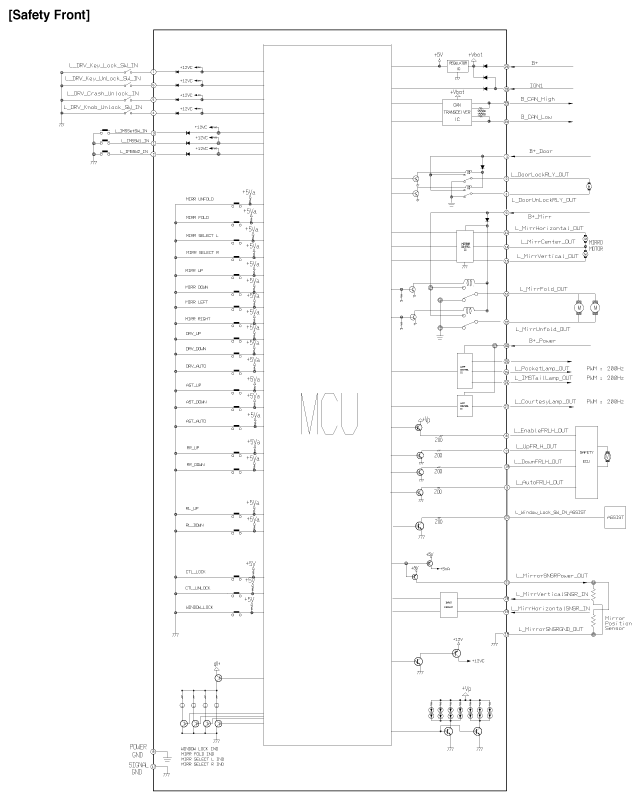

Fig 1: Driver Power Window Module Circuit Diagram (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

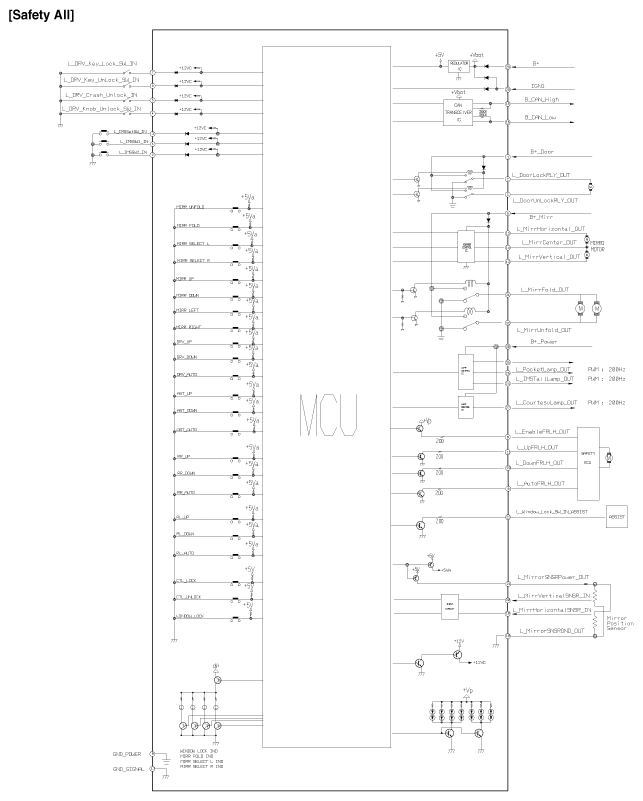

Fig 2: Driver Power Window Module Circuit Diagram (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

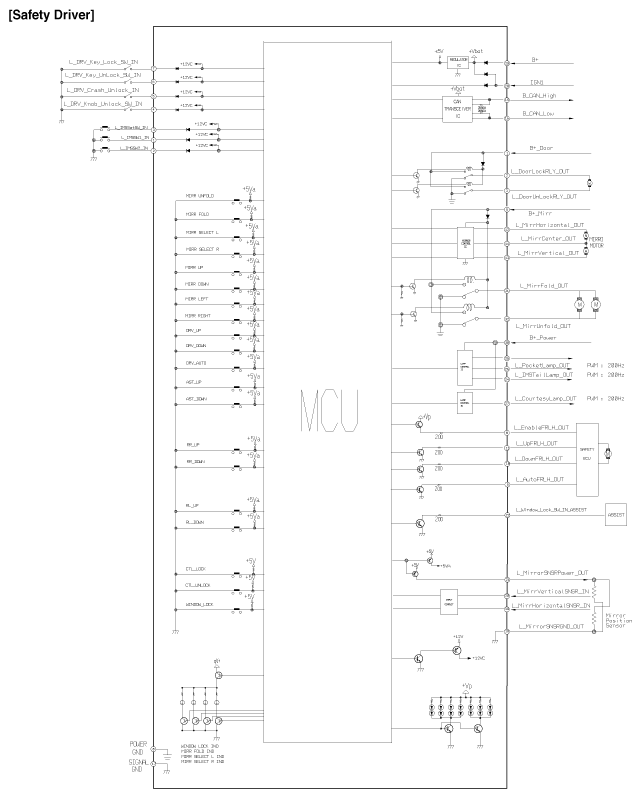

Fig 3: Driver Power Window Module Circuit Diagram (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Driver Power Window Module Circuit Diagram (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
