Lubrication System - 2.4L
›
Engine Oil
›
Flow Diagram
Flow Diagram

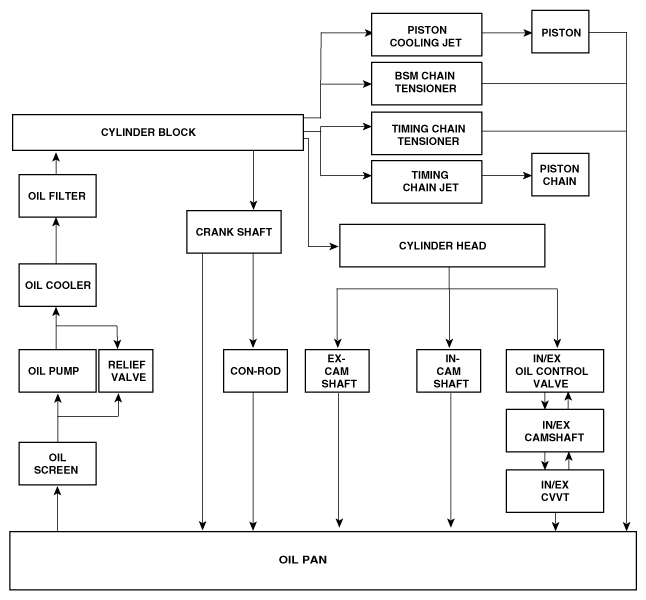

Fig 1: Engine Oil Flow Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

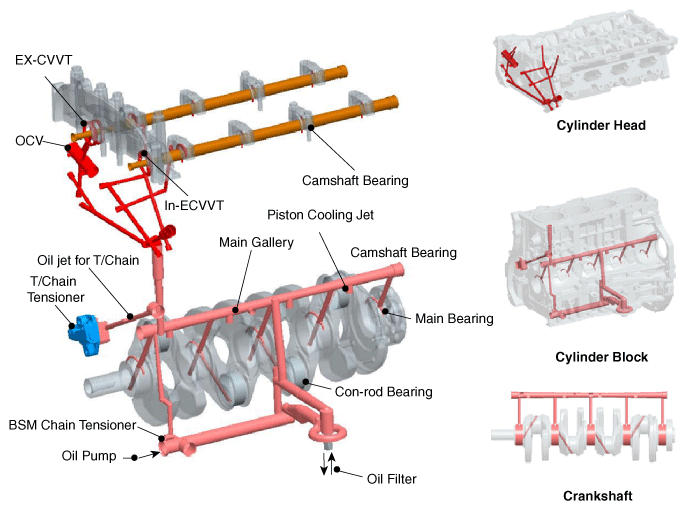

Fig 2: Engine Oil Communication Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
