Components And Components Location: Components

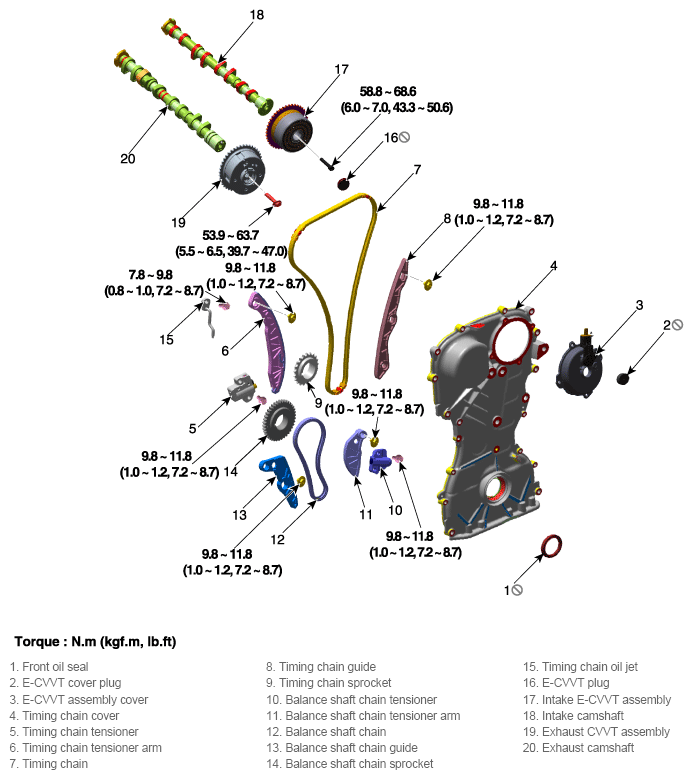

Fig 1: Timing System Components With Torque Specifications
G12177558Courtesy of KIA MOTORS AMERICA, INC.
