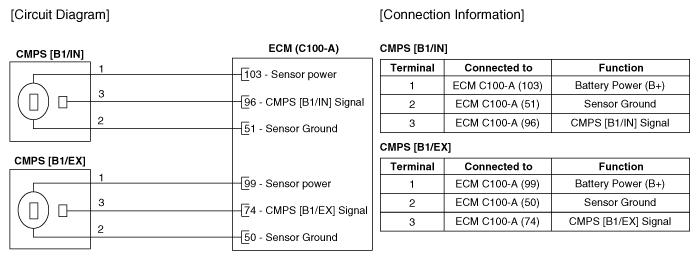

Home › Kia › 2017 › Sorento L › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
