Components Location

WARNING: This page is about a different variant/trim than selected.

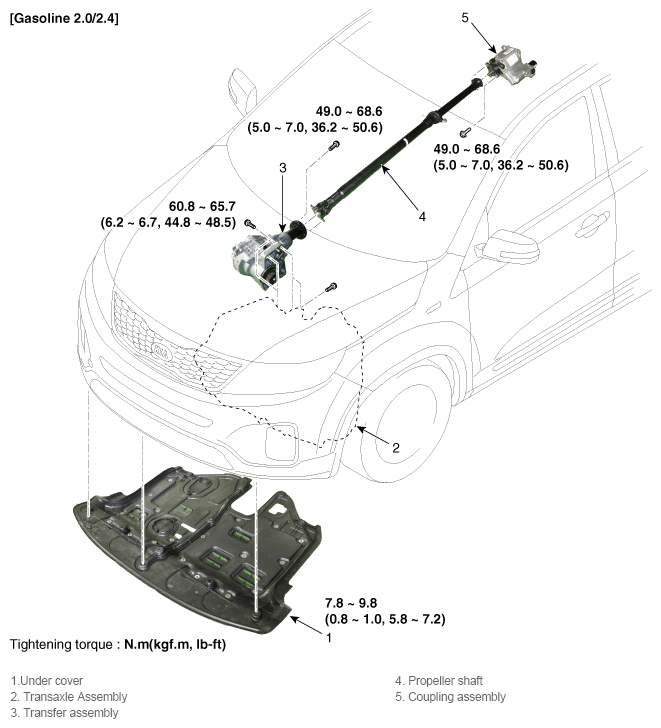

Fig 1: Locating Front Wheel Transfer Assembly Components With Torque Specifications (Gasoline 2.0/2.4)

Courtesy of KIA MOTORS AMERICA, INC.

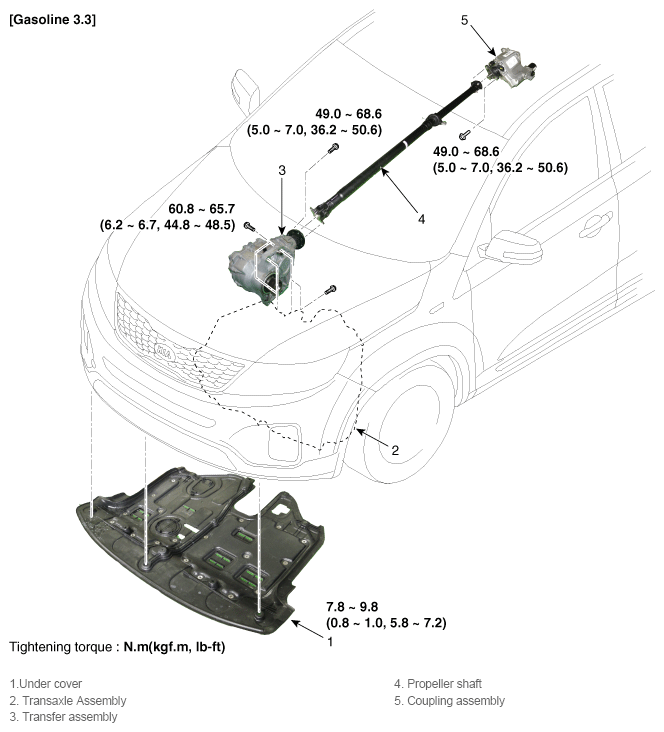

Fig 2: Locating Front Wheel Transfer Assembly Components With Torque Specifications (Gasoline 3.3)

Courtesy of KIA MOTORS AMERICA, INC.
