Components And Components Location: Components

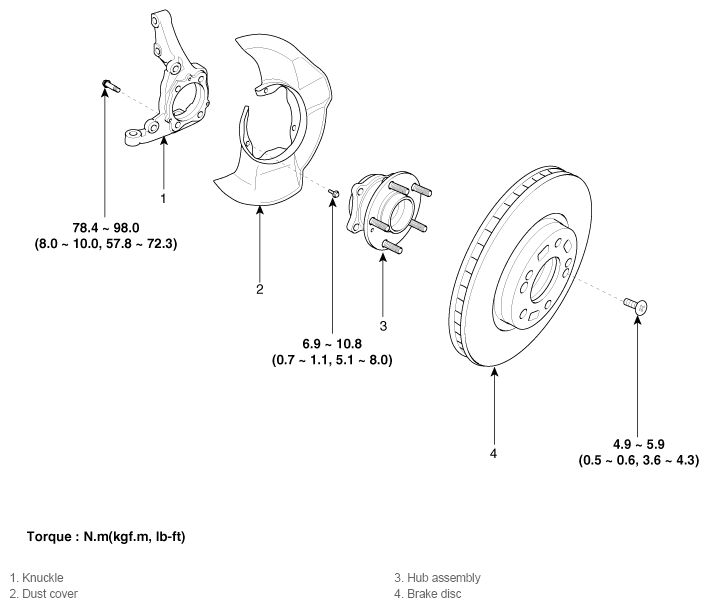

Fig 1: Locating Front Hub, Knuckle & Tone Wheel Components With Torque Specifications
G12171955Courtesy of KIA MOTORS AMERICA, INC.
