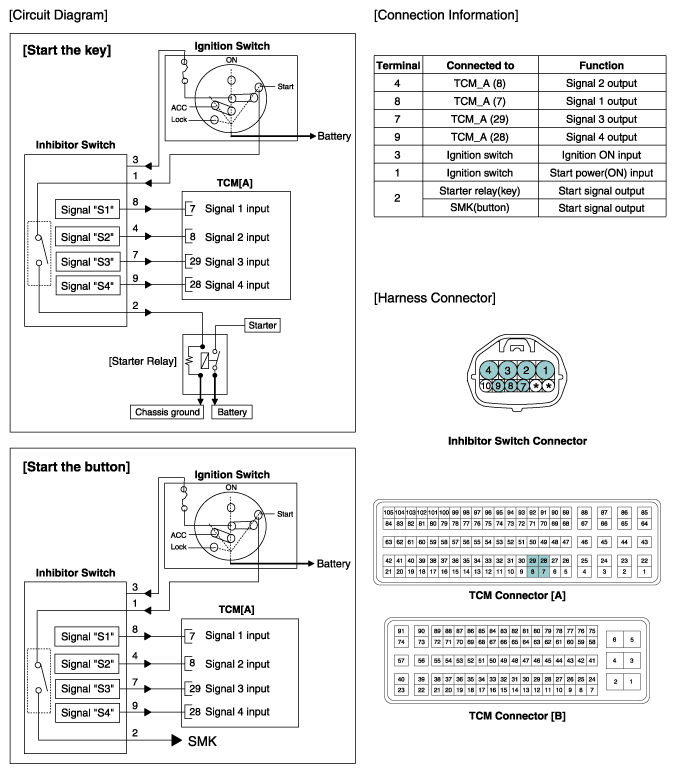

Home › Kia › 2017 › Sorento L › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L › Inhibitor Switch › Schematic Diagrams › Circuit Diagram
