Wave Form

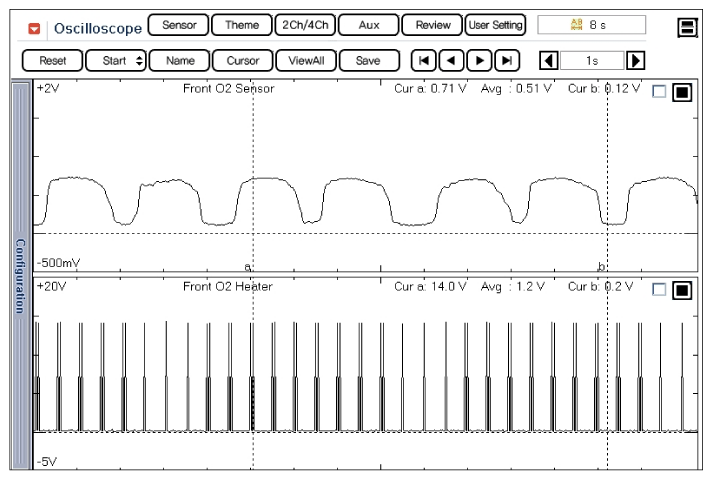

Fig 1: Screen Display - Front Heated Oxygen Sensor Signal Waveform
G12181517Courtesy of KIA MOTORS AMERICA, INC.

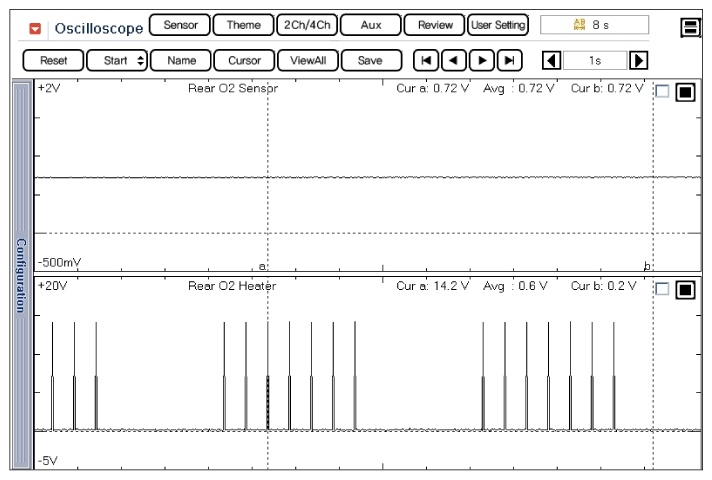

Fig 2: Screen Display - Rear Heated Oxygen Sensor Signal Waveform
G12181518Courtesy of KIA MOTORS AMERICA, INC.
