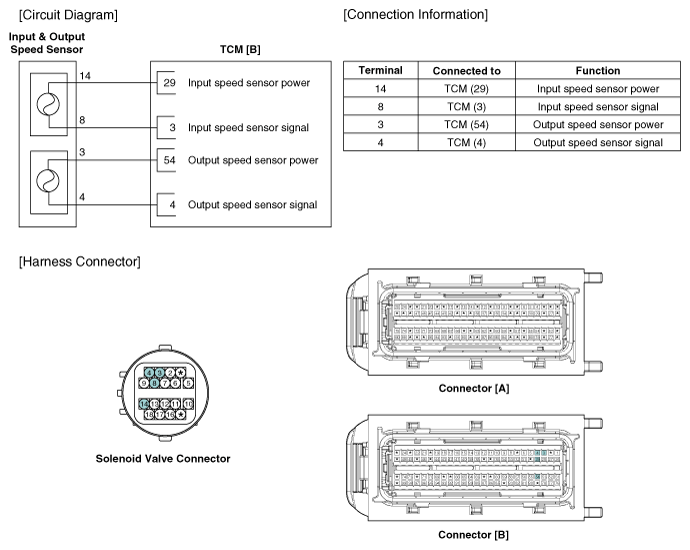

Home › Kia › 2017 › Sorento SX, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 3.3L › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
