Automatic Transaxle Control System - 3.3L
›
Shift Cable
›
Components and Components Location
›
Components
Components and Components Location: Components

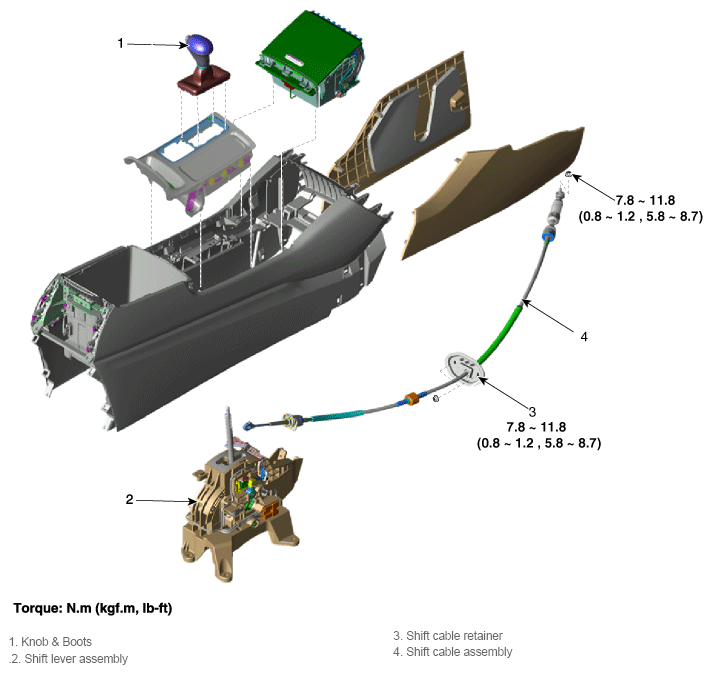

Fig 1: Shift Cable Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
