Components And Components Location: Components

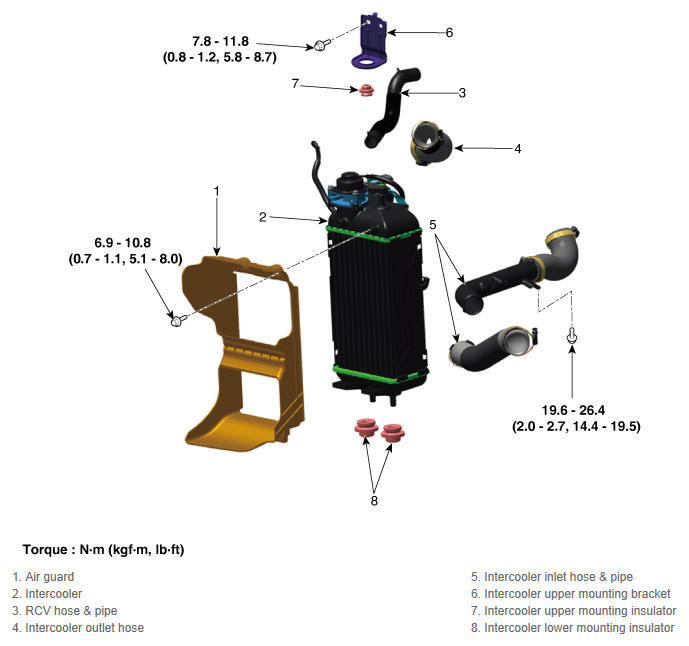

Fig 1: Intercooler Components Location With Torque Specification
G12238296Courtesy of KIA MOTORS AMERICA, INC.
