Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

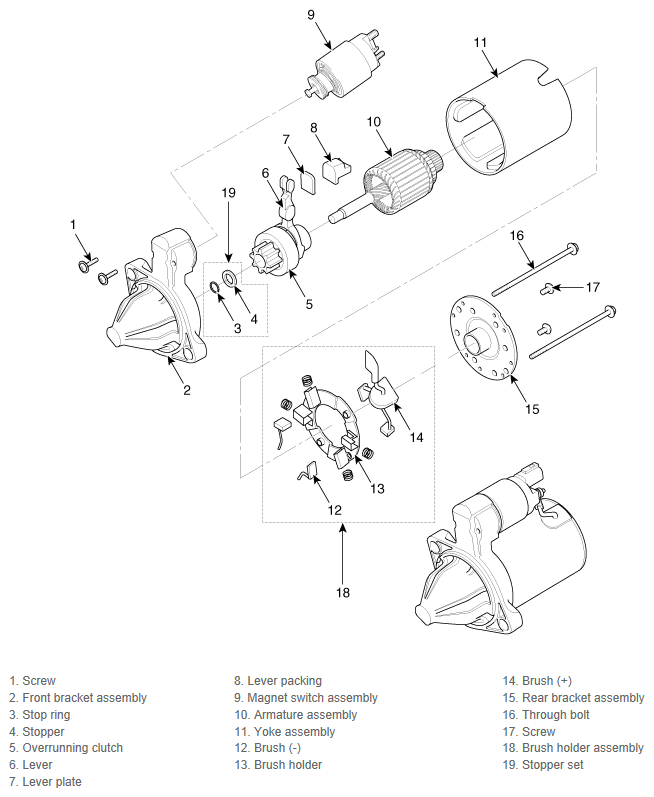

Fig 1: Exploded View Of Starter
G12227116Courtesy of KIA MOTORS AMERICA, INC.
