Dual Clutch Transmission Control System - 1.6L T
›
Input Speed Sensor 1
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

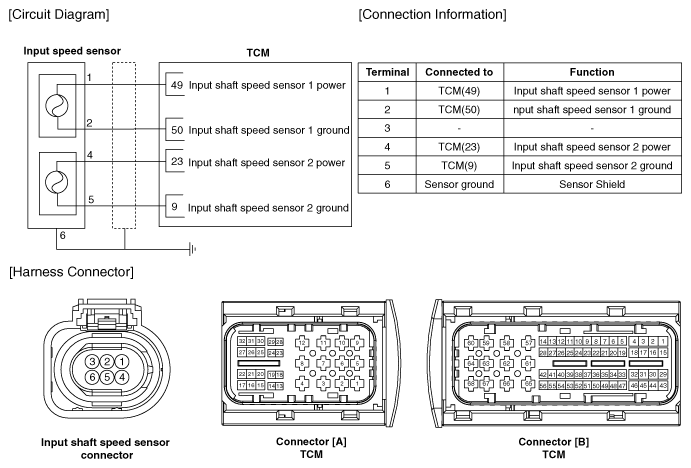

Fig 1: Input Speed Sensor 1 Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
