Circuit Diagram: (M/T)

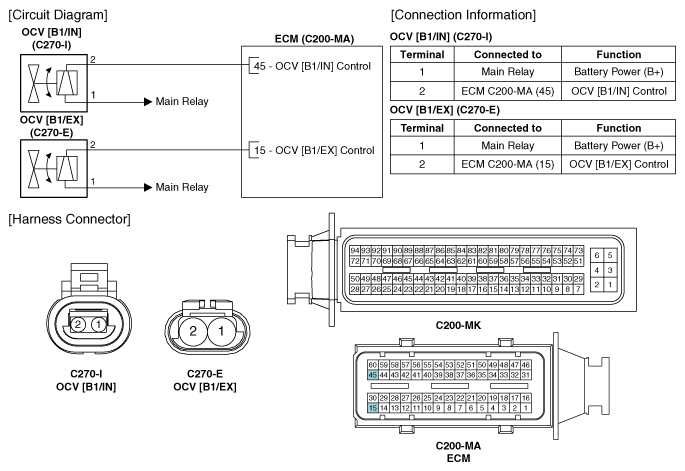

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit Diagram (M/T) And Connector End View
G12239177Courtesy of KIA MOTORS AMERICA, INC.
