Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.0L
›
ETC (Electronic Throttle Control) System
›
Schematic Diagrams
›
Circuit Diagram
›
(A/T)
Circuit Diagram: (A/T)

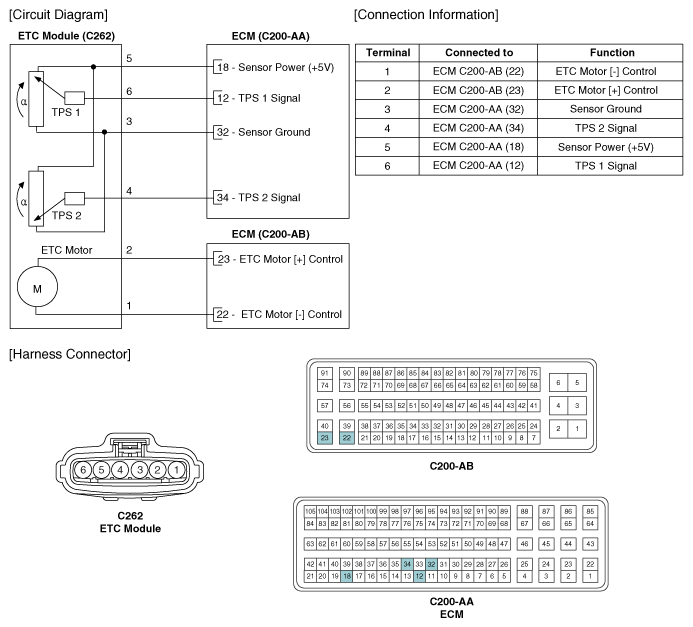

Fig 1: Electronic Throttle Control System Circuit Diagram (A/T) And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
