Soul +
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.0L
›
Fuel Pressure Control Valve
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)
Circuit Diagram: (M/T)

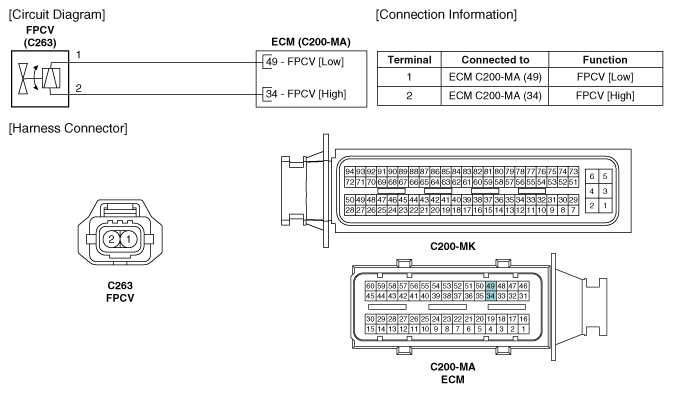

Fig 1: Fuel Pressure Control Valve Circuit Diagram (M/T) And Connector End View
