FixVault
Home
›
Kia
›
2017
›
Soul +
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Hydraulic System - 2.0L
›
Valve Body
›
Components And Components Location
›
Components Location
Components Location

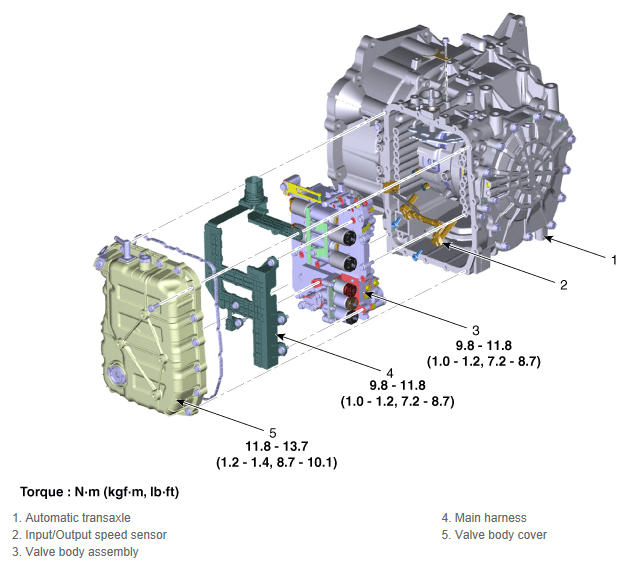

Fig 1: Valve Body Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
